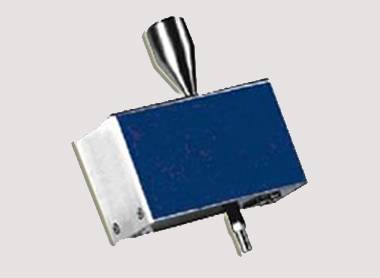

Multi-Point Real Time Monitoring System: SDL5111
Features and Benefits:
1. Multi-point Real-time Monitoring System takes
the newest optics granule technology
2. Each point has extremely high capability and
price ratio.
3. Provides several multi-function appendixes, and
can install it at any place
4. Supervise on-line during continuously 24
hour×7day.
5. Simultaneously survey the data of all channels.
6. Applied for clean-room verification, clean bench
verification, IAQ investigation, food process
investigation, hospital surgical room, filter testing |
 |
- Counting efficiency and outer covering: 50% (conforming to JIS);
- Guards against the static electricity, stainless steel outer covering.
- Radium emitting photo source
- Zero-count rank: laser diode; < 1count/5minute (conforming to JIS).
- Adjust and the requirement of vacuum source: NIST;
- Outer vacuum source >15” (38.1cm) of Hg.
- Supporting software and correspondence patterns (when ordering chooses):
- Supervisory system; RS-485 Mod-bus, 4-20mA, CEMS
- Output Power Source and Environment Condition: 24VDC;
- Operating: 10 ℃ ~ 40 ℃, 20% ~ 95%,
- Storage: -10 ℃ ~ 50 ℃, the max is 98%
- Appendix Including: an operating manual;
- Options: the standard sampling tie-in;
the sampling rubber tube;
the electric cable;
the zero counting filters;
the power source adapter;
software and so on.
Type |
Range |
Flow Rate |
Characteristic |
Comm. |
Size and Weight |
Remote 5111 |
0.3-10µm
2 channels |
2.83 LPM |
Compact exterior design, multifunction and optional other equipments |
RS-485 |
128*80*100mm
0.38kg |
Remote 5112 |
0.5-25µm
2 channels |
2.83 LPM |
Compact exterior design, multifunction and optional other equipments |
RS-485 |
128*80*100mm
0.38kg |
Remote 5113 |
0.3-10µm
4 channels |
2.83 LPM |
Compact exterior design, multifunction and optional other equipments |
RS-485 |
128*80*100mm
0.38kg |
Remote 5114 |
0.5-25µm
4 channels |
2.83 LPM |
Compact exterior design, multifunction and optional other equipments |
RS-485 |
128*80*100mm
0.38kg |
Remote 5115 |
0.3-10µm
6 channels |
2.83 LPM |
Compact exterior design, multifunction and optional other equipments |
RS-485 |
128*80*100mm
0.38kg |
Product Catalogue:
Contact us: Sales Director: Andrew Linken Email: sale@sentinaininc.com
Technical Director: Jack F. Email: tech@sentinaininc.com
Service Support: Dacheng Dang Email: service@sentinaininc.com
Without Notification when all products are subjected to technical changes. Please contact us immediately if you want to get more information about the products. We are looking forward to sincere cooperation with you.
|
|
